12 Pin Click Connect Multipin Connectors Ideal for Wing or Stab Wiring from IRC Emcotec (20-24AWG Pins) A85250 / 2862
The Click Connect Fuselarge plug kit is a versatile plugging system for self crimping. Polarity protected and lockable plugs and sockets e. g. for wiring of up to six servos.
The pins can be assigned freely, combinations of e. g. wing servos, lighting modules or smoke pumps are possible. With the two pin variant for example battery cables can be equipped with a secure plugging connection.

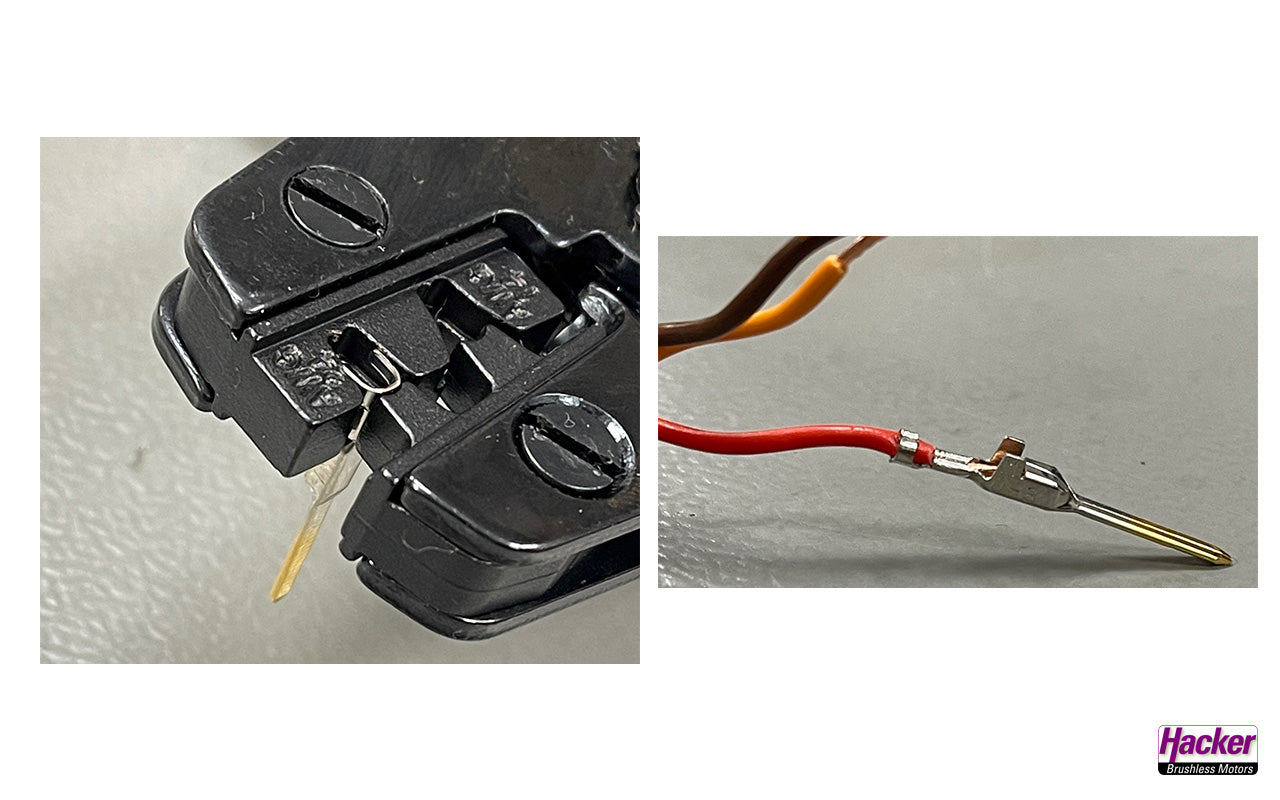

The plugs and sockets must be crimped by the customer.
Variant description and examples
2 Pin variant e. g. for battery connection cables
3 pin variant e. g for a single wing servo
6 pin variant e. g. for two wing servos.
12 pin variant e. g. for four servos or three servos and lighting
16 pin variant e. g. for five servos
20 pin variant e. g. for six servos and lighting
Delivery contents: 1 plug housing, 1 socket housing, contact pins for plug and socket housings according to pin variant.
