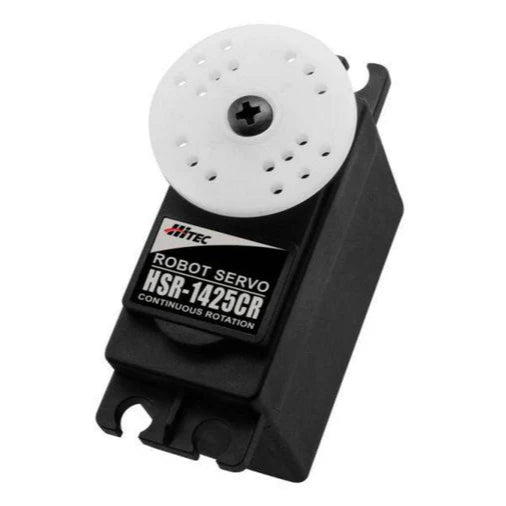

Hitec HSR1425CR Continuous Rotation Robot Servo 2222410
Roll over image to zoom in Click on image to zoom
Hitec HSR1425CR Continuous Rotation Robot Servo 2222410Hitec HSR-1425CR Standard Analogue Cored Servo 41.7g 3.4kg/0.87s 4.8V - 6.0V 2222410Hitec HSR-1425CR Standard Analogue Cored Servo 41.7g 3.4kg/0.87s 4.8V - 6.0V 2222410Hitec HSR-1425CR Standard Analogue Cored Servo 41.7g 3.4kg/0.87s 4.8V - 6.0V 2222410Hitec HSR-1425CR Standard Analogue Cored Servo 41.7g 3.4kg/0.87s 4.8V - 6.0V 2222410Hitec HSR-1425CR Standard Analogue Cored Servo 41.7g 3.4kg/0.87s 4.8V - 6.0V 2222410Hitec HSR-1425CR Standard Analogue Cored Servo 41.7g 3.4kg/0.87s 4.8V - 6.0V 2222410

Hitec HSR1425CR Standard Analogue Cored Servo 41.7g 3.4kg/0.87s 4.8V - 6.0V 2222410

Save 13%
HitecSKU: 2222410
Price:
£17.60 £20.25
Stock:
In stock at supplier warehouse.  Lead time: 2-3 days

UK Customers = This product includes VAT.

Non-UK Customers = This product excludes UK VAT – Other taxes may apply.

 More payment options

Description

Hitec HSR-1425CR Standard Analogue Cored Servo 41.7g 3.4kg/0.87s 4.8V - 6.0V 2222410

The HSR-1425CR is the continuous rotation (non-proportional) version of the HS-425BB

Continuous rotation ideal for robotic applications

  • Series - Robot
  • Size - Standard
  • Dimensions - 40.6×19.8×36.6mm
  • Command Protocol - PWM
  • Circuit - Analogue
  • Weight - 41.7 g
  • Voltage Range - 4.8V - 6.0V
  • Max Torque (kg/cm) - 3.4
  • Max Speed (sec/60°) - 52
  • Spline - 24T (Ø6mm)
  • Motor - Cored
  • Gears - Nylon
  • Case - Engineering Plastic
  • Bearings - Dual Ball Bearing
  • Circuit Detail - HT7003 Analog SMT
  • Motor Detail - 3 Pole Metal Brush Ferrite
  • Gear Detail - Pom Resin
  • Compatible Horns - Micro Horn [M-I, M-X, M-O, R-O, R-X, R-I, R-D, R-C] & Heavy Duty Horn [HD-IL, HD-IM, HD-IS, HD-LS, HD-IG, HD-LL, HD-LG, HD-OS] & Metal Horn [R-ML] & Quarter Scale Horn [Q-O, Q-I, Q-X] & Super Horn [R-XA] & Spool Drum Horn & Sail Arm Horn
Data Sheet
